FIXING ELEMENTS


SM SCREWLESS CLAMPS
SMD DOUBLE CLAMPS
CHANNEL FIXING ELEMENT
SM CLAMPS
CONDUCTOR FIXING ELEMENT
SIMPLE AND DOUBLE SM CLAMPS

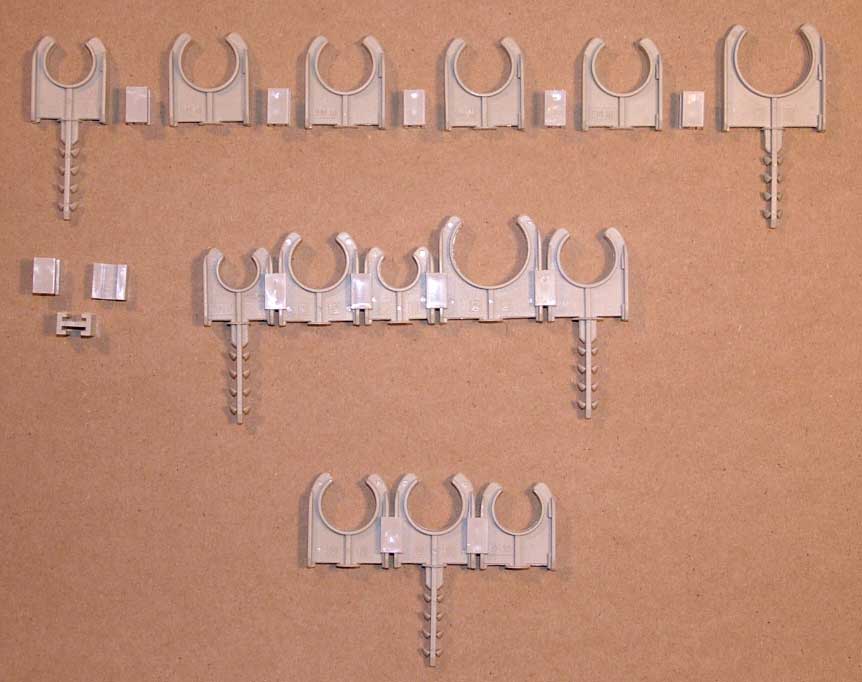

SM SCREWLESS CLAMPS

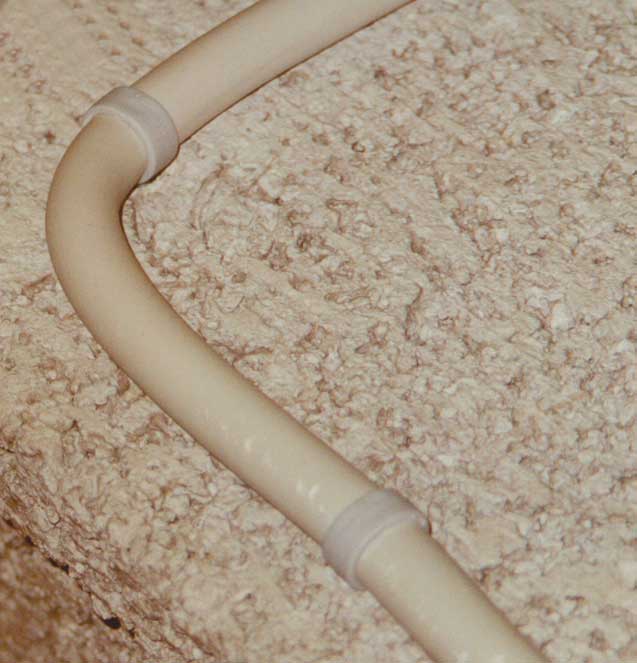

Two clamp versions are available: with a pin (drill a Φ 6mm borehole into the material and insert the clamp) and without a pin (linking elements enclosed in the sac).

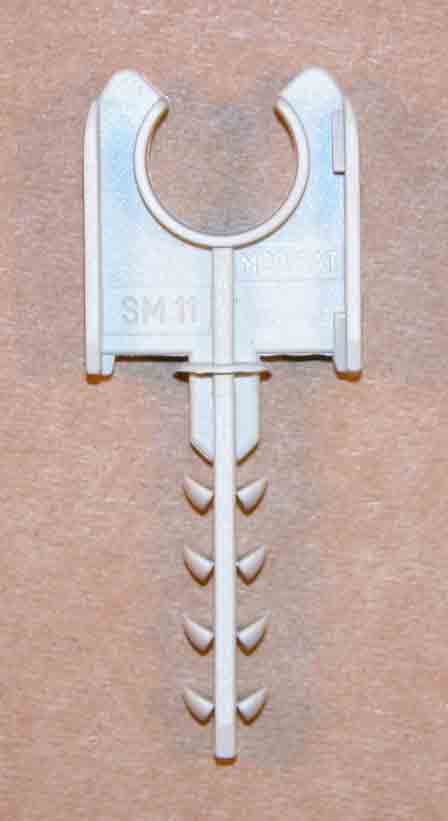

SM 11 CLAMP
usage: for fixing PN 11 pipes
material: PA 6
colour: Gray RAL 7035
packing: 200 pcs

              650°C

SM 11 with pin
EAN: 3830022320117 (label on the bag)

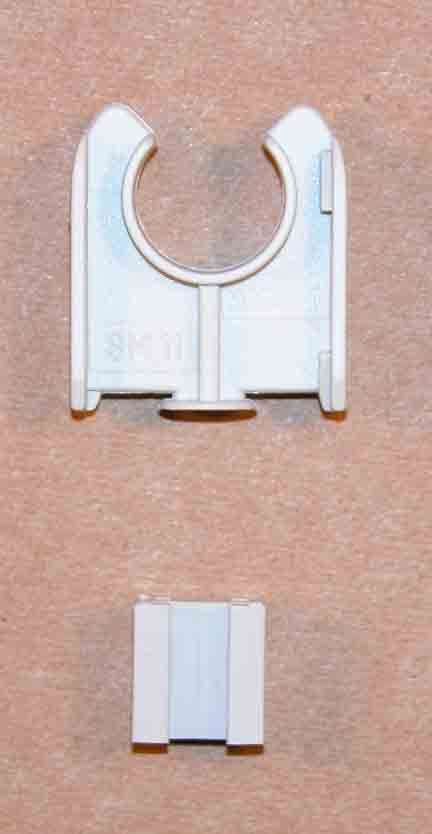

SM 11 without pin + linking element
EAN: 3830022320155 (label on the bag)

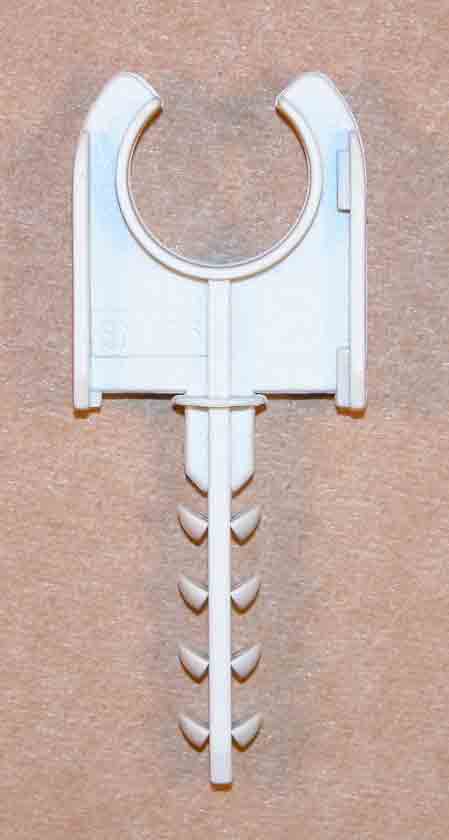

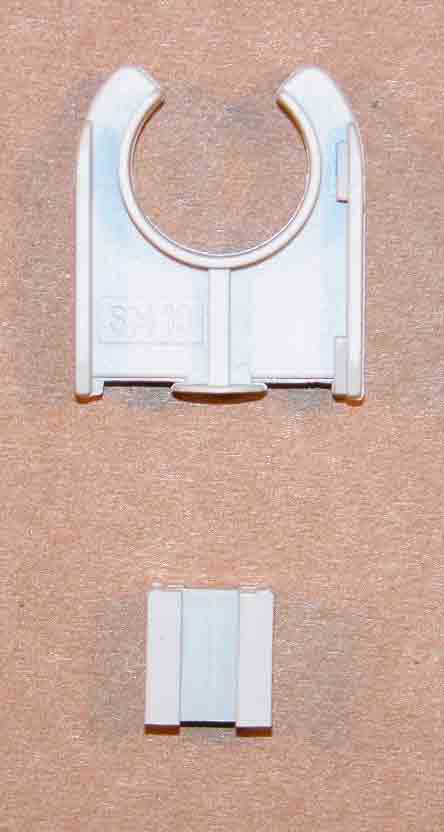

SM 13,5 CLAMP
usage: for fixing PN 13,5 pipes
material: PA 6
colour: Gray RAL 7035
packing: 200 pcs

             650°C

SM 13,5 with pin
EAN: 3830022320124 (label on the bag)

SM 13,5 without pin + linking element
EAN: 3830022320162 (label on the bag)

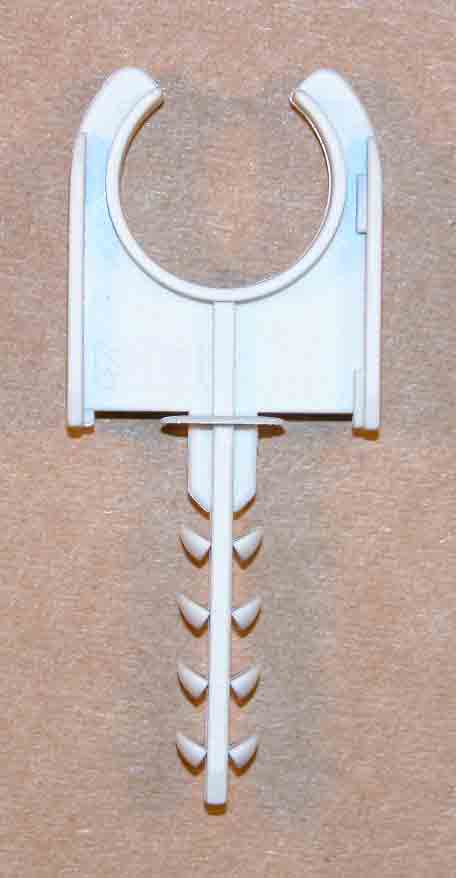

SM 16 CLAMP
usage: for fixing PN 16 pipes
material: PA 6
colour: Gray RAL 7035
packing: 200 pcs

             650°C

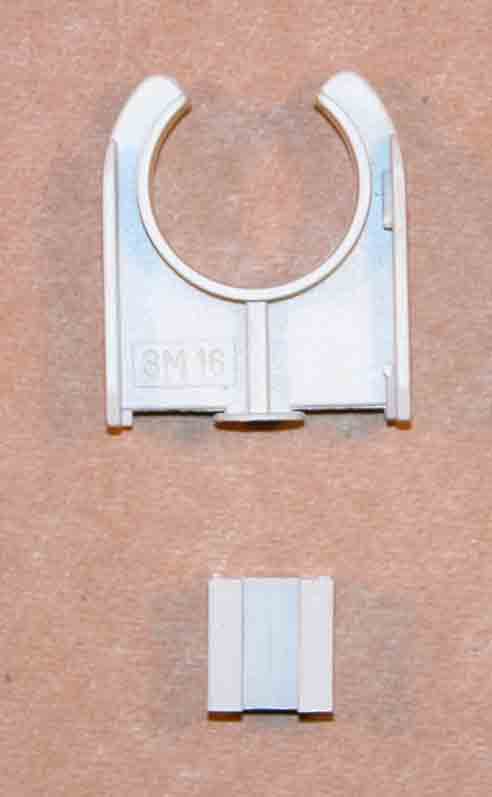

SM 16 with pin
EAN: 3830022320131 (label on the bag)

SM 16 without pin + linking element
EAN: 3830022320179 (label on the bag)

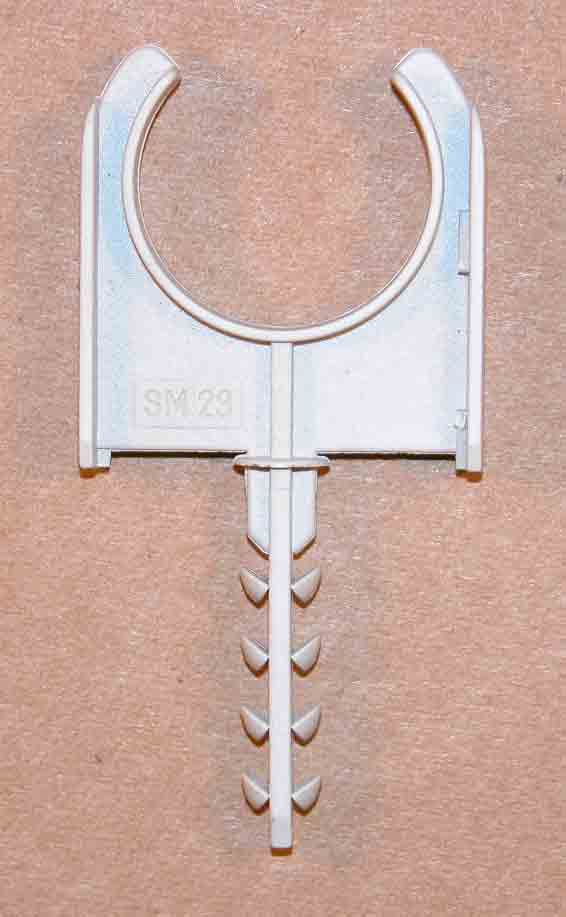

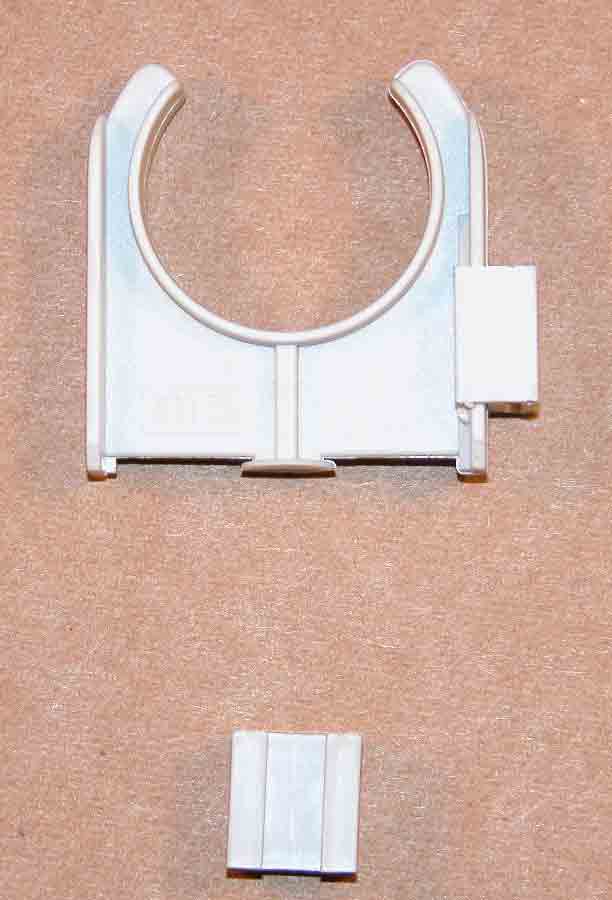

SM 23 CLAMP
usage: for fixing PN 23 pipes
material: PA 6
colour: Gray RAL 7035
packing: 100 pcs

             650°C

SM 23 with pin
EAN: 3830022320148 (label on the bag)

SM 23 without pin + linking element
EAN: 3830022320186 (label on the bag)




SMD DOUBLE CLAMPS

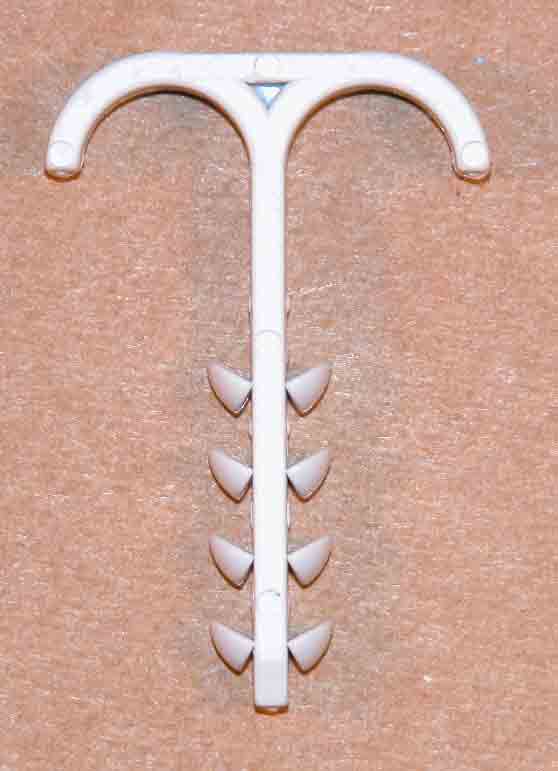

SMD 5-12 DOUBLE CLAMP
usage: for fixing conductors
material: PA 6
colour: Gray RAL 7035
EAN: 3830022320100 (label on the bag)
packing: 200 pcs
             650
°C

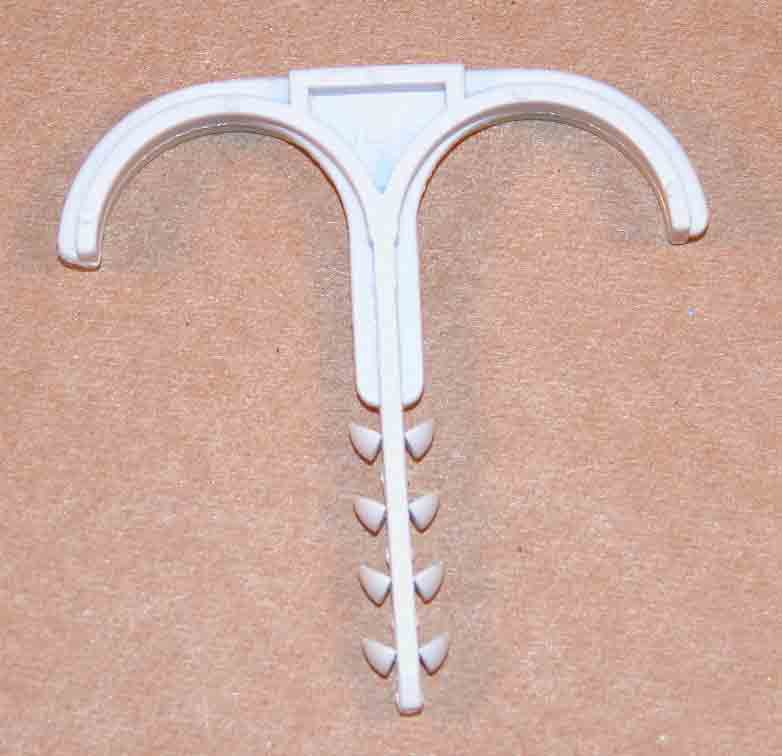

SMD 12-25 DOUBLE CLAMP
usage: for fixing conductors
material: PA 6
colour: Gray RAL 7035
EAN: 3830022320094 (label on the bag)
packing: 200 pcs/3200 pcs
              650
°C






CHANNEL FIXING ELEMENT





SM CHANNEL FIXING ELEMENT
usage: for fixing all types of plastic channels
material: PA 6
colour: Gray RAL 7035
EAN: 3830022320087 (label on the bag)
packing: 200 pcs
              650°C



SM CLAMPS






SM CLAMPS
usage: for fixing coneductors of different cross-sections
material: PA 66
colour: Gray RAL 7035
packing: 200 pcs
             650°C

SM 5-6 CLAMP
EAN: 3830022320193 (label on the bag)
SM 6-7 CLAMP
EAN: 3830022320209 (label on the bag)
SM 7-8 CLAMP
EAN: 3830022320216 (label on the bag)
SM 9-10 CLAMP

EAN: 3830022320223
(label on the bag)
SM 10-11 CLAMP
EAN: 3830022320230 (label on the bag)
SM 11-12 CLAMP
EAN: 3830022320247 (label on the bag)

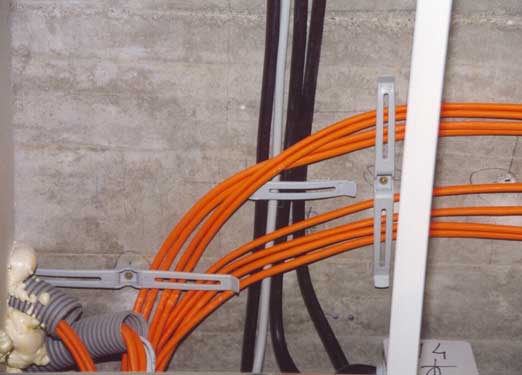

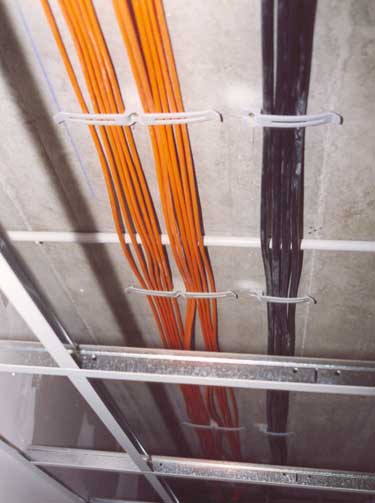

CONDUCTOR FIXING ELEMENTS

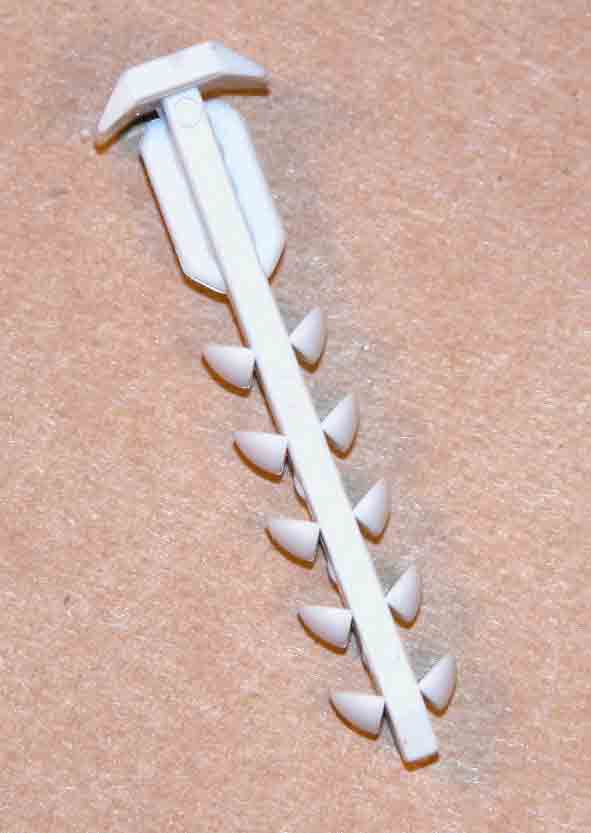

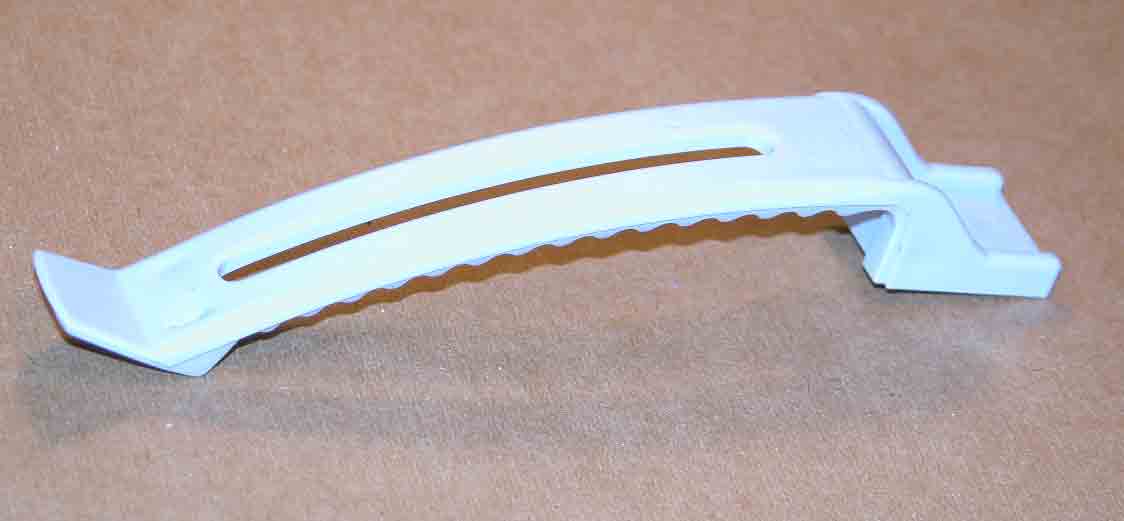

SM CONDUCTOR FIXING ELEMENT - simple
usage: for fixing 1 to 8 or more conductors (depend on cross-section of conductors)
material: PC
colour: Gray RAL 7035
EAN: 3830022320070 (label on the bag)
packing: 50 pcs/1000 pcs
              650°C

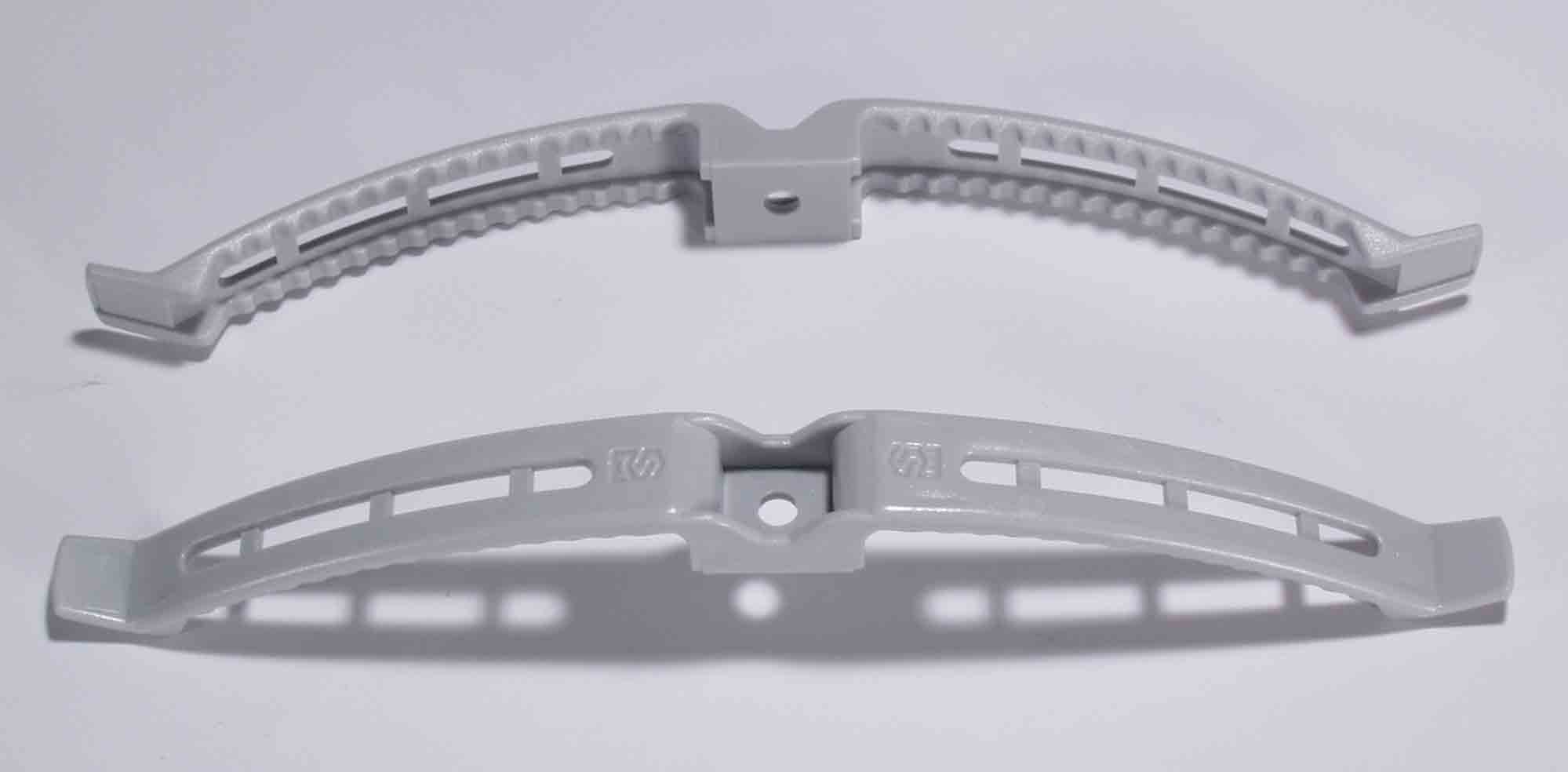

SM CONDUCTOR FIXING ELEMENT - double
usage: for fixing 1 to 16 or more conductors (depend on cross-section of conductors)
material: PC
colour: Gray RAL 7035
EAN: 3830022321879 (label on the bag)
packing: 25 pcs/250 pcs
            650°C



SIMPLE AND DOUBLE SM CLAMPS

Used for electric installations, central heating system (copper pipes), floor heating system, water supply installations, fuel supply copper piping, air-conditioning installations etc.

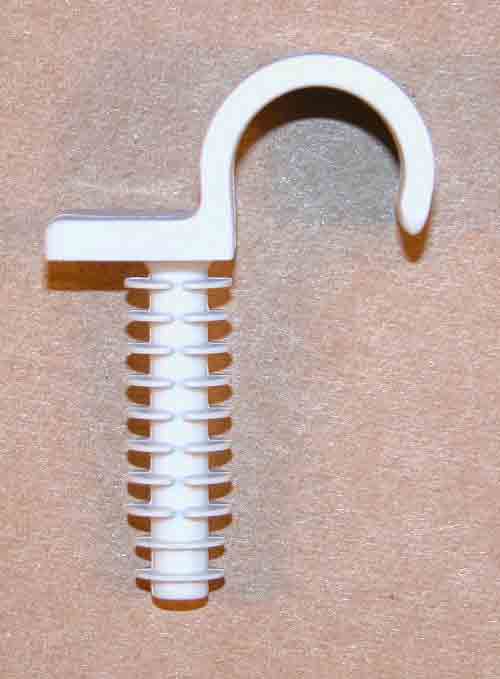

SM 16 SIMPLE CLAMP
usage: for fixing various pipes, external pipe Φ 15-18,5mm
material: PA 6
colour: Gray RAL 7035
EAN: 3830022321794 (label on the bag)
packing: 100 pcs/2000 pcs
              650
°C

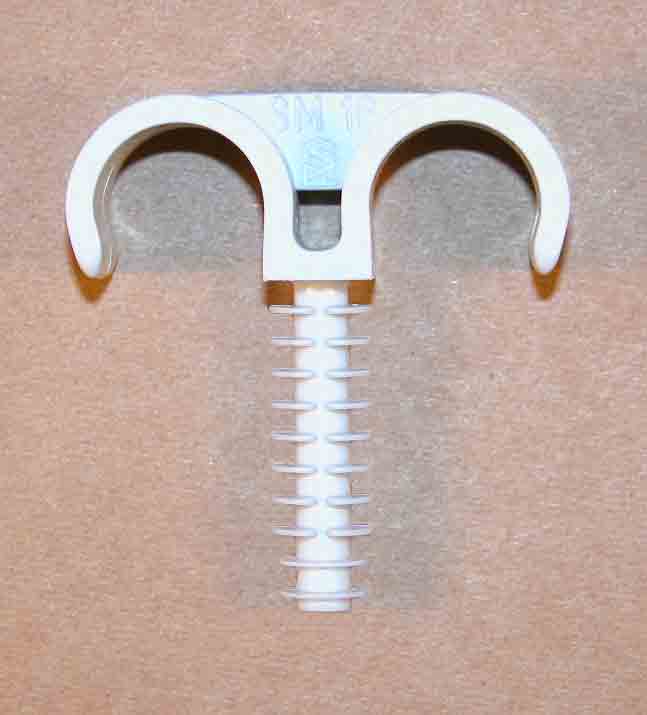

SM 16 DOUBLE CLAMP
usage:
for fixing various pipes, external pipe Φ 15-18,5mm
material: PA 6
colour: Gray RAL 7035
EAN: 3830022321824 (label on the bag)
packing: 100 pcs/1500 pcs
              650°C

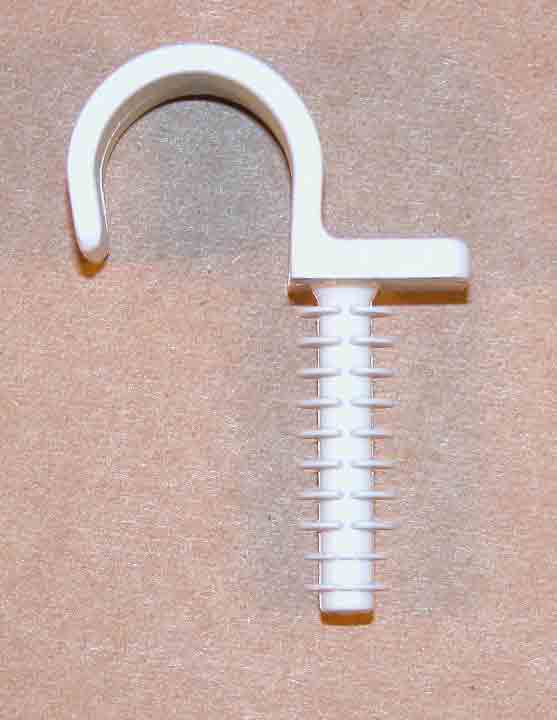

SM 20 SIMPLE CLAMP
usage: for fixing various pipes, external pipe
Φ 18,5-24mm
material: PA 6
colour: Gray RAL 7035
EAN: 3830022321800 (label on the bag)
packing: 100 pcs/2000 pcs
              650
°C

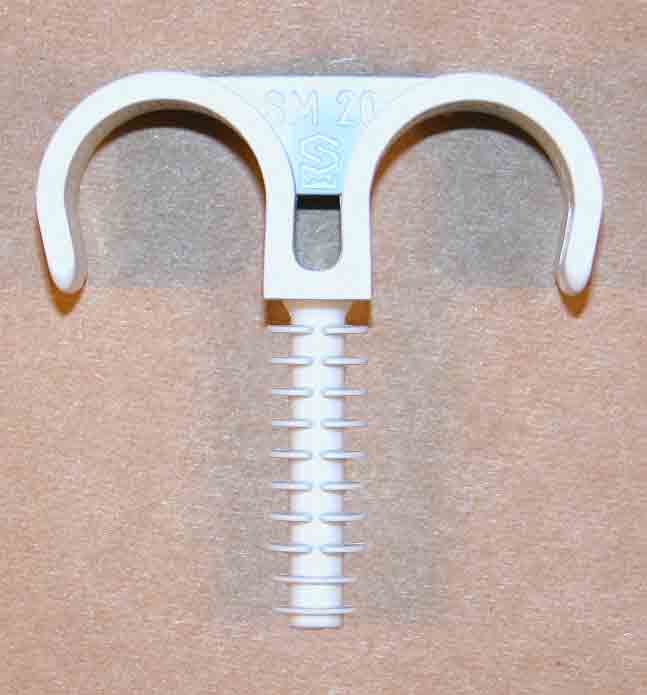

SM 20 DOUBLE CLAMP
usage: for fixing various pipes, external pipe
Φ 18,5-24mm
material: PA 6
colour: Gray RAL 7035
EAN: 3830022321831 (label on the bag)
packing: 100 pcs/1000 pcs
              650
°C

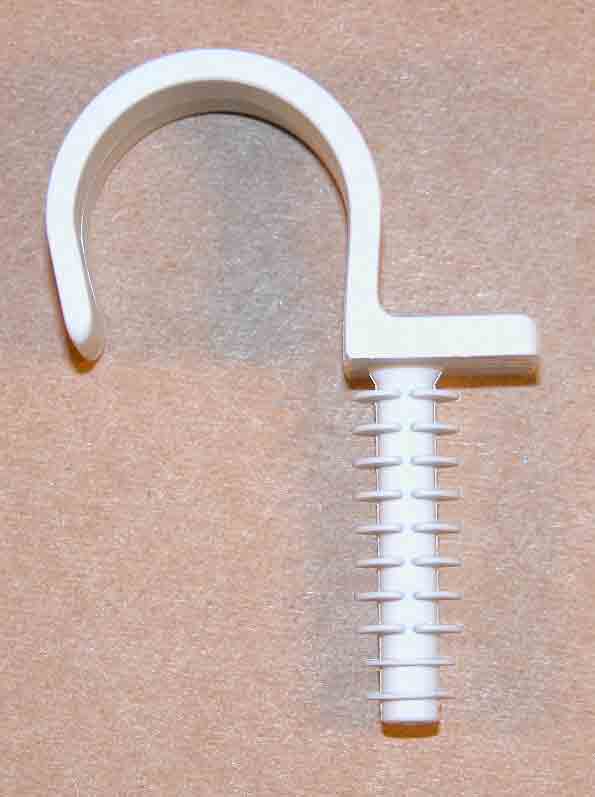

SM 25 SIMPLE CLAMP
usage: for fixing various pipes, external pipe
Φ 24-30mm
material: PA 6
colour: Gray RAL 7035
EAN: 3830022321817 (label on the bag)
packing: 100 pcs/1500 pcs
              650
°C

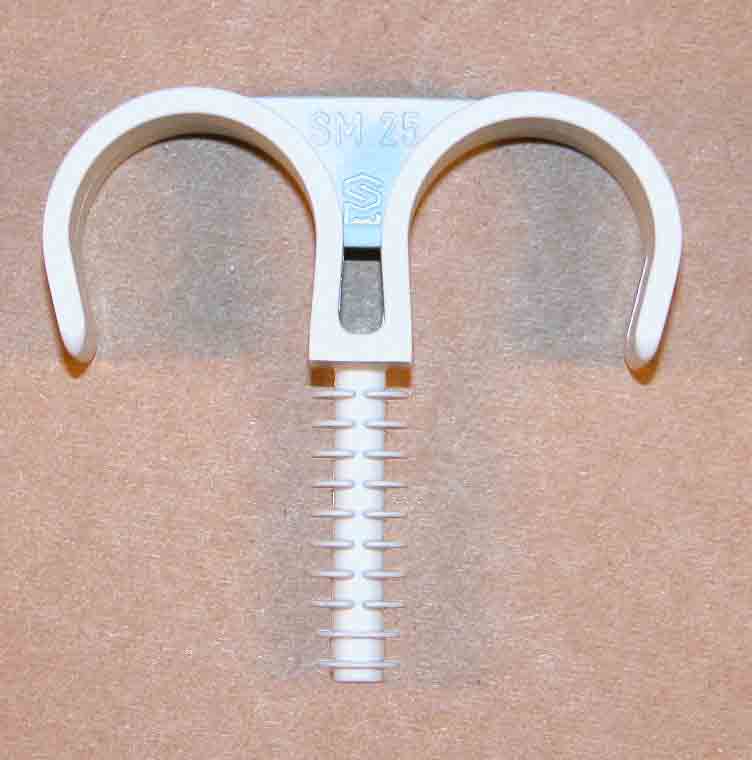

SM 25 DOUBLE CLAMP
usage:
for fixing various pipes, external pipe Φ 24-30mm
material: PA 6
colour: Gray RAL 7035
EAN: 3830022321848 (label on the bag)
packing: 100 pcs/800 pcs
              650°C
